Automation Parts SICK Proximity Sensor Switch With Second Sender LED Background

Name: Automation Parts SICK Proximity Sensor Switch With Second Sender LED Background
Brand: SICK
Price: 1 USD

Buy cheap Automation Parts SICK Proximity Sensor Switch With Second Sender LED Background product

Brand Name : SICK

Model Number : WL18-3 WT18-3 WLF18-3

Certification : CE

Place of Origin : Germany

MOQ : 1 PCS

Price : consult for best discount

Payment Terms : T/T , Western Union,Paypal,, MoneyGram,, L/C

Supply Ability : 10-500 Pcs/month

Delivery Time : 2-15 days

Packaging Details : Sick original package

Sensing range max : Up to more than 45m

Type of light : Infrared light or Visible red light

Switching output : NPN or PNP

Applications : Industry Automation

Enclosure rating : IP65 Or IP67

Discount : Yes

Contact Now

Sick W18-3 Series Proximity Sensor Switch Automation Parts Sensor

Applications

SICK's W18-3 photoelectric sensor series reliably detects objects under difficult application conditions. Different variants are available, including proximity sensors with high-precision background suppression, retro-reflective sensors with autocollimation and through-beam sensors with high operating reserves. These sensors are immune to ambient light, background reflections and light absorbing objects, making them a reliable sensor solution. The W18-3 series can also be customized according to the customer’s requirements in critical applications. And, these sensors are available with IO-Link, which is the new sensor communication standard of the future.

At a glance

Best-in-class optical performance due to superior OES technology
Autocollimation optics
Background suppression with second sender LED
Slim, durable plastic housing
Operation via double teach-in pushbutton or potentiometer
Wide variety of options for operation, connection, and optics
Flexible sensor settings, monitoring, advanced diagnostics, and visualization

Your Benefits

Reliable object detection due to best-in-class background suppression and resistance to ambient light
A wide range of product variants provides increased user flexibility
Less downtime in industrial environments
IO-Link provides easy data access from the PLC
Quick and easy configuration
Quick and easy integration using function blocks
Easy device replacement and identification

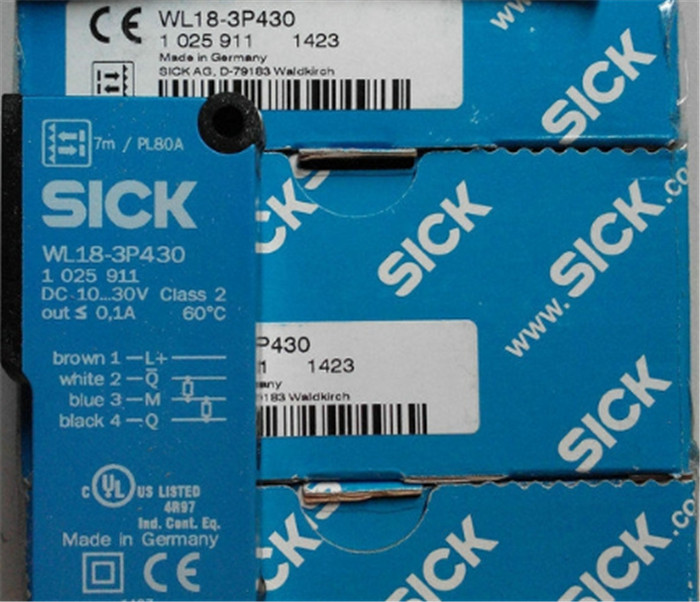

FEATURES Of WL18-3P430 For Reference

Sensor/ detection principle	Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D)	17.6 mm x 75.5 mm x 33.5 mm
Housing design (light emission)	Rectangular
Sensing range max.	10 mm ... 600 mm 1)
Sensing range	50 mm ... 600 mm 1)
Type of light	Visible red light
Light source	LED 2)
Light spot size (distance)	Ø 15 mm (300 mm)
Wave length	675 nm
Adjustment	Potentiometer, 4 turns

MECHANICS/ELECTRONICS

Supply voltage	10 V DC ... 30 V DC 1)
Ripple	< 5 Vpp 2)
Power consumption	40 mA 3)
Switching output	PNP
Output function	Complementary
Switching mode	Light/dark switching
Output current Imax.	100 mA
Response time	< 700 µs 4)
Switching frequency	700 Hz 5)
Connection type	Male connector M12, 4-pin
Circuit protection	A 6) C 7) D 8)
Weight	40 g
Housing material	Plastic, ABS
Optics material	Plastic, PMMA
Enclosure rating	IP67
Ambient operating temperature	–40 °C ... +60 °C
Ambient storage temperature	–40 °C ... +75 °C
UL File No.	NRKH.E181493 & NRKH7.E181493

Automation Parts SICK Proximity Sensor Switch With Second Sender LED Background

Models of Sick W18-3 Series Proximity Sensor Switch Miniature Photoelectric Sensors

1026029	WL18-3P730
1026030	WL18-3N730
1026031	WT18-3P411
1026032	WT18-3P431
1026033	WT18-3P111
1026034	WT18-3P131
1026035	WT18-3N431
1026383	WT18-3P421
1026559	WT18-3P230
1026562	WT18-3A600S02
1026565	WL18-3P430F09
1026623	WT18-3P420S05
1027515	WT18-3N110S08
1027572	WT18-3P420S09
1028052	WT18-3P420S10
1029213	WT18-3P420S12
